Gravity Plate

CHF 49.00

The Gravity Plate weighs exactly 3lbs / 1.35 kg and is attached behind the front truck to make fast stand up slides with small race boards easier. From development to production, everything is done completely in-house.

You get a complete set that includes everything you need, except for a drill and a skate tool.

The back is covered with cork to avoid scratching the board and to dampen vibrations. A 20mm cork riser is also included. This allows the center of gravity to be lowered even more in order to achieve the hammer head effect. The set includes stainless steel bolts in lengths of 1.25″ and 2″ (without or with riser) and matching nylock nuts. Of course, we took the same diameter as your standard skate hardware so that they are interchangeable and everything can be fastened with a common skate tool. To reduce the risk of injury, the bolts and nuts are countersunk in the plate.

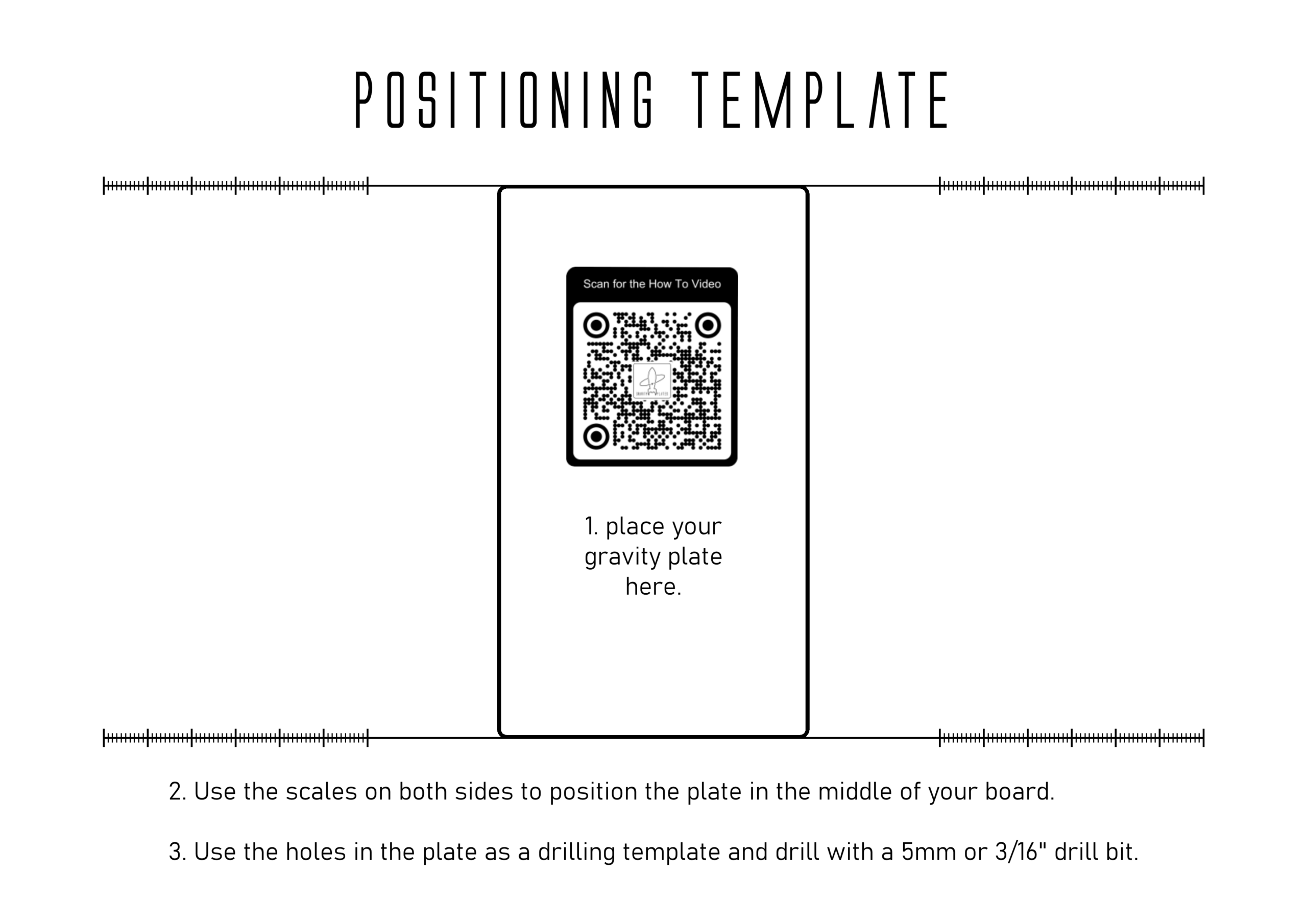

You will also receive a template with which the Gravity Plate can be centered on the board. We actively refrained from cutting any threads into the weight. Thus, the plate itself can be used as a drilling template. In addition, thanks to the nylock nuts, there is no need for Locktite. The distance between the mounting holes is 63.5mm or 2.5″.

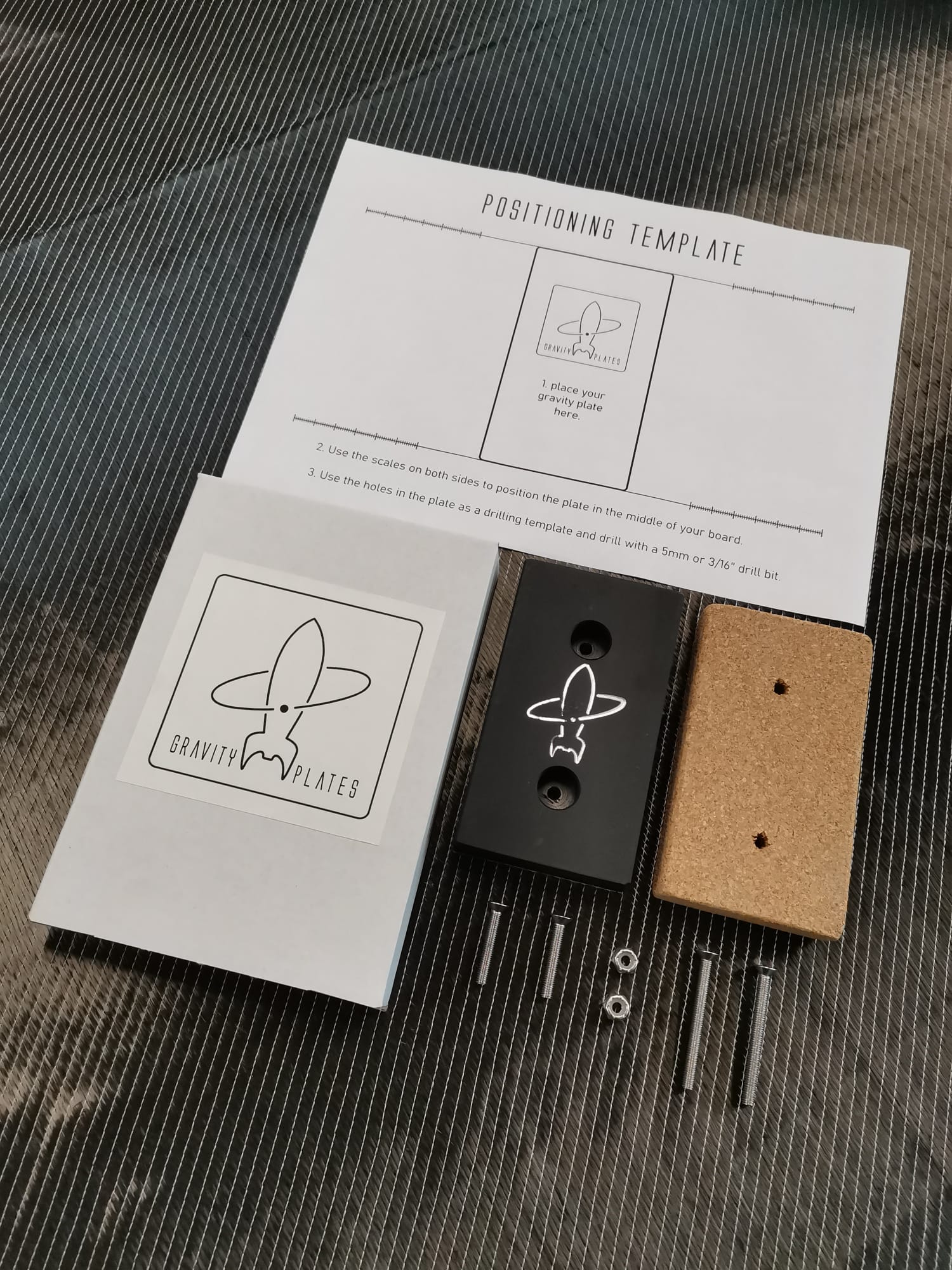

The Gravity Plate Kit includes:

  • 1 Gravity Plate of 3lbs / 1.35 kg
  • 1 bamboo riser, 20mm
  • 2 stainless steel bolts in length of 1.25″
  • 2 stainless steel bolts in length of 2″
  • 2 nylock nuts
  • 1 positioning template
  • 1 drilling template (the plate itself)

If you order the plate from us together with a board, we will of course be happy to drill it for you. After ordering, we will contact you to determine the exact position.

CHF 49.00

SKU: 202451 Categories: , ,
